- Extensive Storage Options: With 36x 3.5" SAS drive bays and 2x 240 GB SSDs, enjoy flexible and scalable storage solutions that provide fast data access and reliable performance, essential for data-intensive applications.
- Robust Power Supply: Featuring 2x 1200W power supplies, this server guarantees stability and reliability, minimizing downtime and ensuring your operations run smoothly even during peak loads.
- Versatile Rack-Mount Design: The Supermicro CSE-847B-X11DPH-T is designed for 4U rack mounting, making it a perfect fit for data centers and server rooms that require efficient space utilization.
Optimized for businesses across Belgium, Canada, Cyprus, Finland, Italy, Netherlands, Norway, Poland, Portugal, Spain, Sweden, the United Kingdom, and the United States, this server bundle meets diverse industry standards, providing consistent performance and reliability.
Investing in the Supermicro CSE-847B-X11DPH-T means securing a powerful infrastructure capable of evolving with your business needs. Its advanced management features streamline operations, allowing your IT team to focus on driving innovation rather than routine maintenance.
Elevate your operational efficiency, reduce costs, and optimize resource utilization with this exceptional server bundle. Perfect for organizations seeking a high-performance, reliable solution, the Supermicro CSE-847B-X11DPH-T empowers you to maximize your digital capabilities and maintain a competitive edge in the ever-evolving market. Discover the reliability and power this server bundle offers and take your business to new heights.

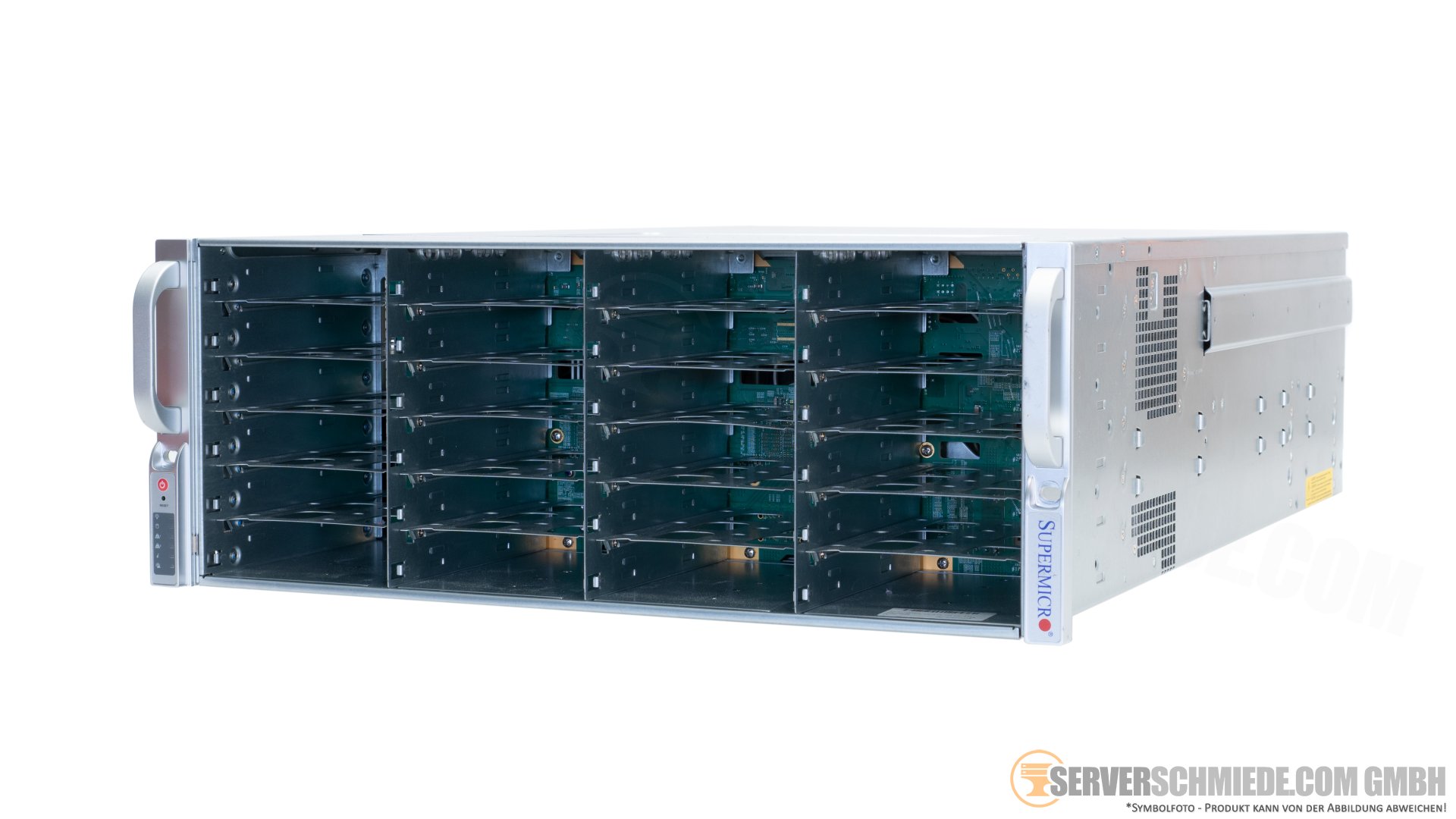

Supermicro CSE-847B X11DPH-T 4U 36x 3,5" SAS 2x Intel XEON Gold 6138 128GB DDR4 2x 240 GB SSD 2x 1200W Rails
Artikelnummer: M418B01
Basispreis: 2.299,00 €
inkl.
19% MwSt | exkl. Versandkosten
Preis exkl. MwSt.: 1.931,93 €
Verfügbarkeit:
Lieferzeit: 2-5 Arbeitstage (exkl. Wochenende, exkl. Feiertage) + Versandlaufzeit
Gewicht: 34.00kg
Enthaltene Komponenten:
-
Server

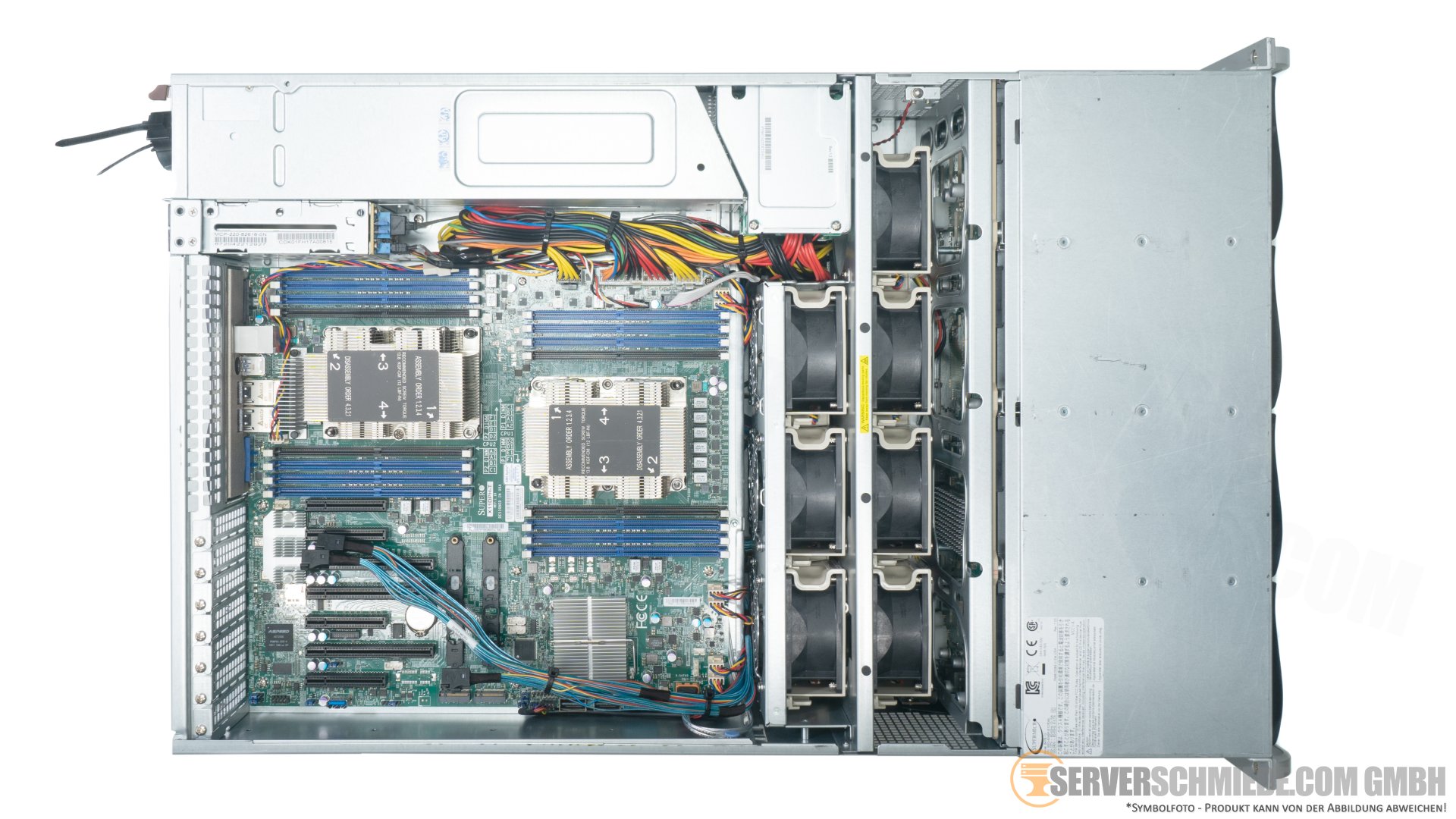

Supermicro CSE-847B X11DPH-T 4U Server 36x 3,5" SAS 12G LFF + 2x 2,5" SFF 2x Intel XEON Scalable LGA3647 2x 10GbE 2x PSU -CTO- -
CPU
2 x Intel Xeon Gold 6138 SR3B5 20C Server Prozessor 20x 2,00 GHz 27,5MB Cache 3647 CPU -
RAM
128GB Registered ECC DDR4 SDRAM (4x 32GB DIMM) -
StorageController
LSI MegaRAID 9361-8i 12G SAS PCIe x8 1GB Cache RAID Controller for HDD SSD Raid 0, 1, 10, 5, 50, 6, 60 inkl. Cache Vault Module + SuperCap Capacitor -
SSD
2 x 240GB 2,5" Samsung PM883 Datacenter Enterprise 24/7 Raid SATA SSD 98K IOPS +NEW+ -
HDD-Trays
2 x Supermicro 2,5" SFF Tray HDD Festplatte Caddy MCP-220-00047-0B -
Controller
Supermicro AOC-STG-i2T Intel X540-T2 2x 10GbE Dual Port Network 10 Gigabit LAN Ethernet PCIe x8 Controller -
PowerSupply
2 x Supermicro 1200W PSU Netzteil 80 Plus Titanium PWS-1K23A-1R -
Kabel
2 x Kaltgerätekabel IEC connector ca. 1,40m C13 - Schuko 10A -

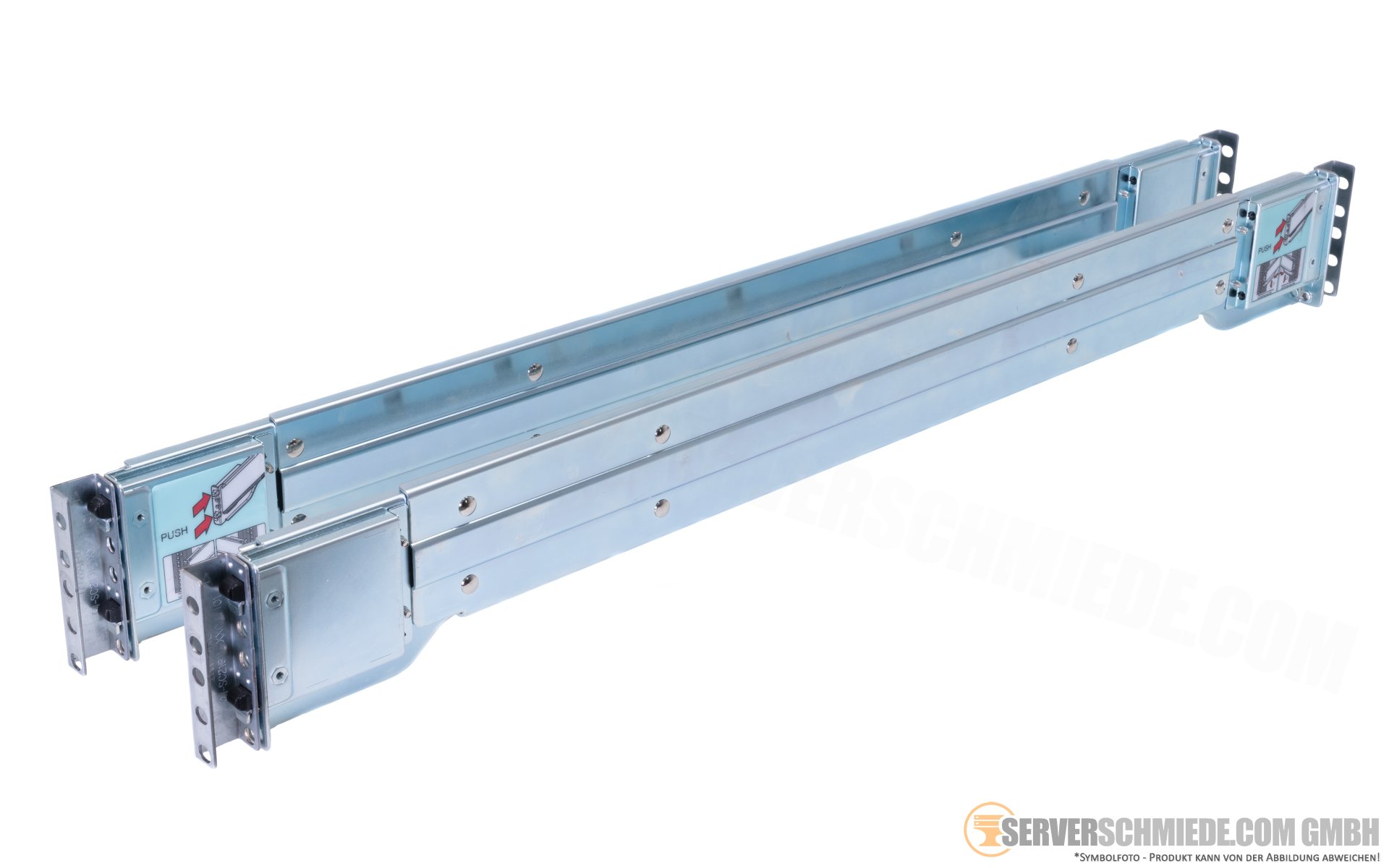

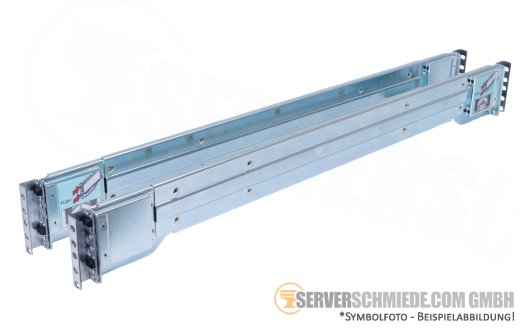

RackRails
Supermicro 4U-5U Rail Kit MCP-290-00057-0N für CSE-417 CSE-418 CSE-842 CSE-846 CSE-847 CSE-848 19" Rackschienen Rails Teilauszug +NEW+ -
Support
12 Monate Bring In Basis Garantie ohne Vorab Austausch ohne Service ohne Reparaturgarantie *
Hersteller:
Supermicro
Gerätetyp:
Server
Bauart:
19" 4 HE
Modell:
CSE-847B
Festplatten HDD Bays:
38x HotSwap Festplatten Einschub SAS/S-ATA Backplane
Optisches Laufwerk:
ohne
Networking:
2x 10GbE X722 + X557 RJ-45 Ethernet Controller
Interne Schnittstellen:
information
2x CPU Sockel LGA3647 Intel CPU Sockel for 2x Intel Xeon Scalable processors
16x 288-pin DDR4 DIMM slots up to 2 TB RAM
Intel® C622 Series Chipset
PCIe Slots
CPU1:
Slot 1 PCIe 3.0 x8 - x8 Connector Half-height, Half-length
Slot 3 PCIe 3.0 x16 - x16 Connector Half-height, Half-length
Slot 6 PCIe 3.0 x8 - x8 Connector Half-height, Half-length
Slot 7 PCIe 3.0 x8 - x8 Connector Half-height, Half-length
CPU2:
Slot 5 PCIe 3.0 x16 - x16 Connector Half-height, Half-length
Slot 4 PCIe 3.0 x16 - x16 Connector Half-height, Half-length
Slot 2 PCIe 3.0 x16 - x16 Connector Half-height, Half-length
Interfaces
2x NVMe PCIe 3.0 x4 M.2 Interface Form Factor: 2242/2260/2280/22110 (Raid 0 / Raid 1)
2x SFF-8087 SATA only Ports
3x USB 3.2 Gen1 port
1x TPM Header
2x SATA Ports
Backplane and Chassis
36 x 3.5" hot-swap SAS/SATA drive bay with SES3
24-port 4U SAS3 12Gbps single-expander backplane (front) SAS3-846EL Rev1.01
12-port 2U SAS3 12Gbps single-expander backplane (rear) SAS3-826EL1
2x 2.5" hot-swap SAS/SATA drive bay
2x CPU Sockel LGA3647 Intel CPU Sockel for 2x Intel Xeon Scalable processors
16x 288-pin DDR4 DIMM slots up to 2 TB RAM
Intel® C622 Series Chipset
PCIe Slots
CPU1:
Slot 1 PCIe 3.0 x8 - x8 Connector Half-height, Half-length
Slot 3 PCIe 3.0 x16 - x16 Connector Half-height, Half-length
Slot 6 PCIe 3.0 x8 - x8 Connector Half-height, Half-length
Slot 7 PCIe 3.0 x8 - x8 Connector Half-height, Half-length
CPU2:
Slot 5 PCIe 3.0 x16 - x16 Connector Half-height, Half-length
Slot 4 PCIe 3.0 x16 - x16 Connector Half-height, Half-length
Slot 2 PCIe 3.0 x16 - x16 Connector Half-height, Half-length
Interfaces
2x NVMe PCIe 3.0 x4 M.2 Interface Form Factor: 2242/2260/2280/22110 (Raid 0 / Raid 1)
2x SFF-8087 SATA only Ports
3x USB 3.2 Gen1 port
1x TPM Header
2x SATA Ports
Backplane and Chassis
36 x 3.5" hot-swap SAS/SATA drive bay with SES3
24-port 4U SAS3 12Gbps single-expander backplane (front) SAS3-846EL Rev1.01
12-port 2U SAS3 12Gbps single-expander backplane (rear) SAS3-826EL1
2x 2.5" hot-swap SAS/SATA drive bay

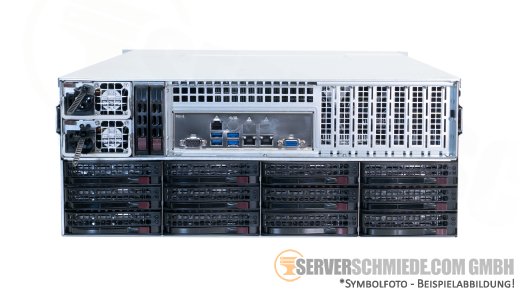

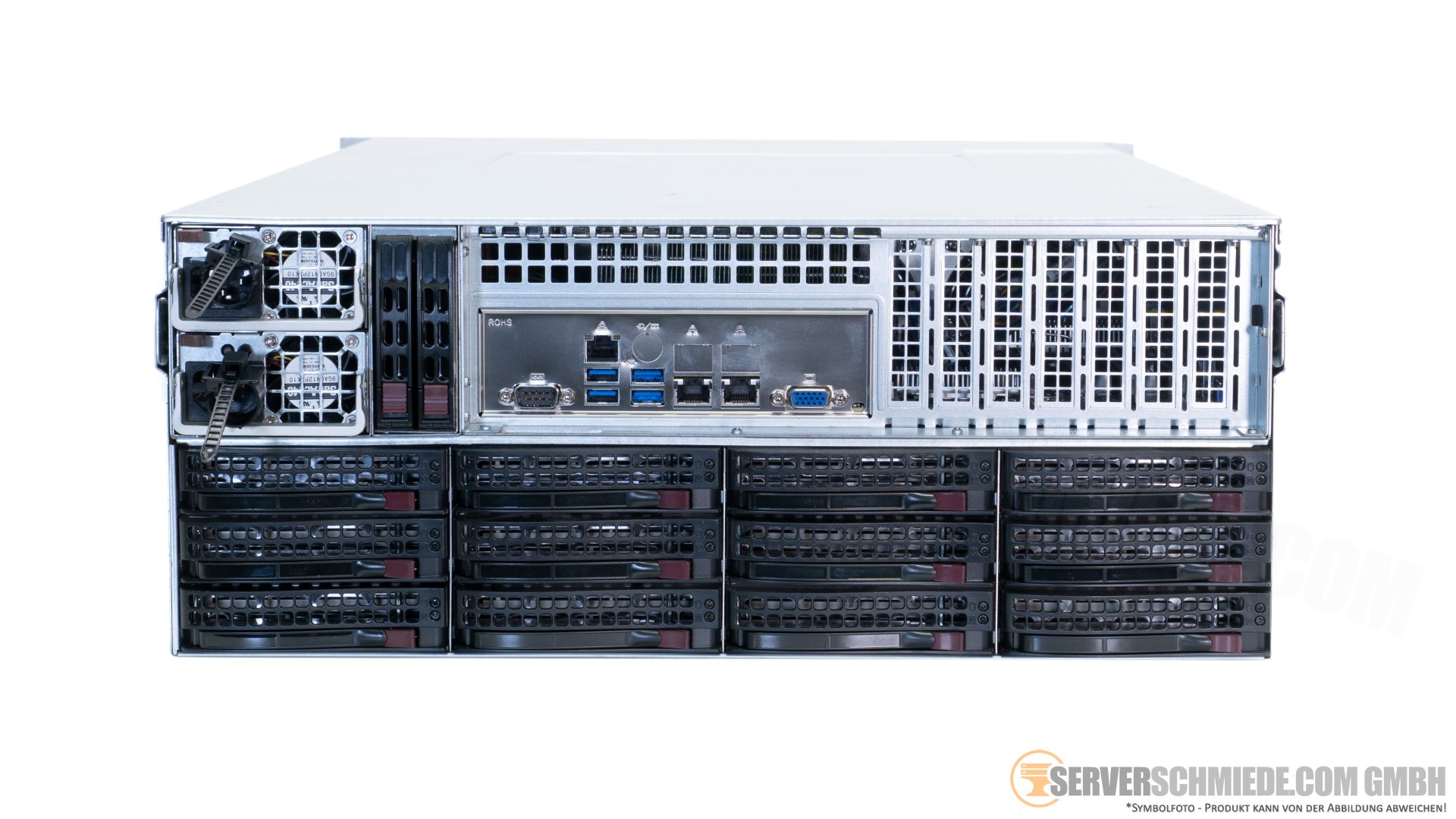

Externe Schnittstellen:
4x USB 3.0
2x RJ45 10GbE RJ-45 ports
1x RJ45 Dedicated IPMI LAN port
1x VGA 15pol. D-SUB
1x Seriell RS232 interface
2x SFF-8644 SAS extern
36x 3.5" Hot-swap SAS/SATA LFF HDD Bay
2x 2,5" Hot-swap SAS/SATA LFF HDD Bay
Dimensions H/W/D: 178mm x 437mm x 699mm
2x RJ45 10GbE RJ-45 ports
1x RJ45 Dedicated IPMI LAN port
1x VGA 15pol. D-SUB
1x Seriell RS232 interface
2x SFF-8644 SAS extern
36x 3.5" Hot-swap SAS/SATA LFF HDD Bay
2x 2,5" Hot-swap SAS/SATA LFF HDD Bay
Dimensions H/W/D: 178mm x 437mm x 699mm
Grafikkarte:
onboard Aspeed AST2400 BMC
Powerunits:
2x 1280W high-efficiency redundant power supply
Kompatible Betriebssysteme:
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11* *kompatibles TPM Modul wird benötigt
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Arbeitsspeicher: DDR4 reg. ECC (PC4-2400T default Speichergeschwindigkeit bei RAM Auswahl)
Angebot konfigurieren / Configure this Offer
(DE)
Supermicro CSE-847B X11DPH-T Server:
- 4U Rackmount für hohe Speicherkapazität
- 2x Intel XEON Gold 6138 CPUs (High Performance)
- 128 GB DDR4 RAM (erweiterbar)
- 36x 3,5" SAS Laufwerkseinschübe
- 2x 240 GB SSD für schnellen Datenspeicher
- 2x 1200W Netzteile (redundant)
- Inklusive Rails für einfache Rackmontage
Hochleistungsserver mit großer Speicherkapazität, ideal für datenintensive Anwendungen und vielseitige Einsatzbereiche in Rechenzentren.
(EN)
Experience unparalleled performance and reliability with this high-capacity server bundle
Expertly designed for today?s demanding IT environments. Featuring 2x Intel Xeon Gold 6138 processors, this server delivers exceptional speed and efficiency, making it ideal for virtualization, data analytics, and cloud-based applications.
Key Features:
- Extensive Storage Options: With 36x 3.5" SAS drive bays and 2x 240 GB SSDs, enjoy flexible and scalable storage solutions that provide fast data access and reliable performance, essential for data-intensive applications.
- Robust Power Supply: Featuring 2x 1200W power supplies, this server guarantees stability and reliability, minimizing downtime and ensuring your operations run smoothly even during peak loads.
- Versatile Rack-Mount Design: The Supermicro CSE-847B-X11DPH-T is designed for 4U rack mounting, making it a perfect fit for data centers and server rooms that require efficient space utilization.
Optimized for businesses across Belgium, Canada, Cyprus, Finland, Italy, Netherlands, Norway, Poland, Portugal, Spain, Sweden, the United Kingdom, and the United States, this server bundle meets diverse industry standards, providing consistent performance and reliability.
Investing in the Supermicro CSE-847B-X11DPH-T means securing a powerful infrastructure capable of evolving with your business needs. Its advanced management features streamline operations, allowing your IT team to focus on driving innovation rather than routine maintenance.
Elevate your operational efficiency, reduce costs, and optimize resource utilization with this exceptional server bundle. Perfect for organizations seeking a high-performance, reliable solution, the Supermicro CSE-847B-X11DPH-T empowers you to maximize your digital capabilities and maintain a competitive edge in the ever-evolving market. Discover the reliability and power this server bundle offers and take your business to new heights.
