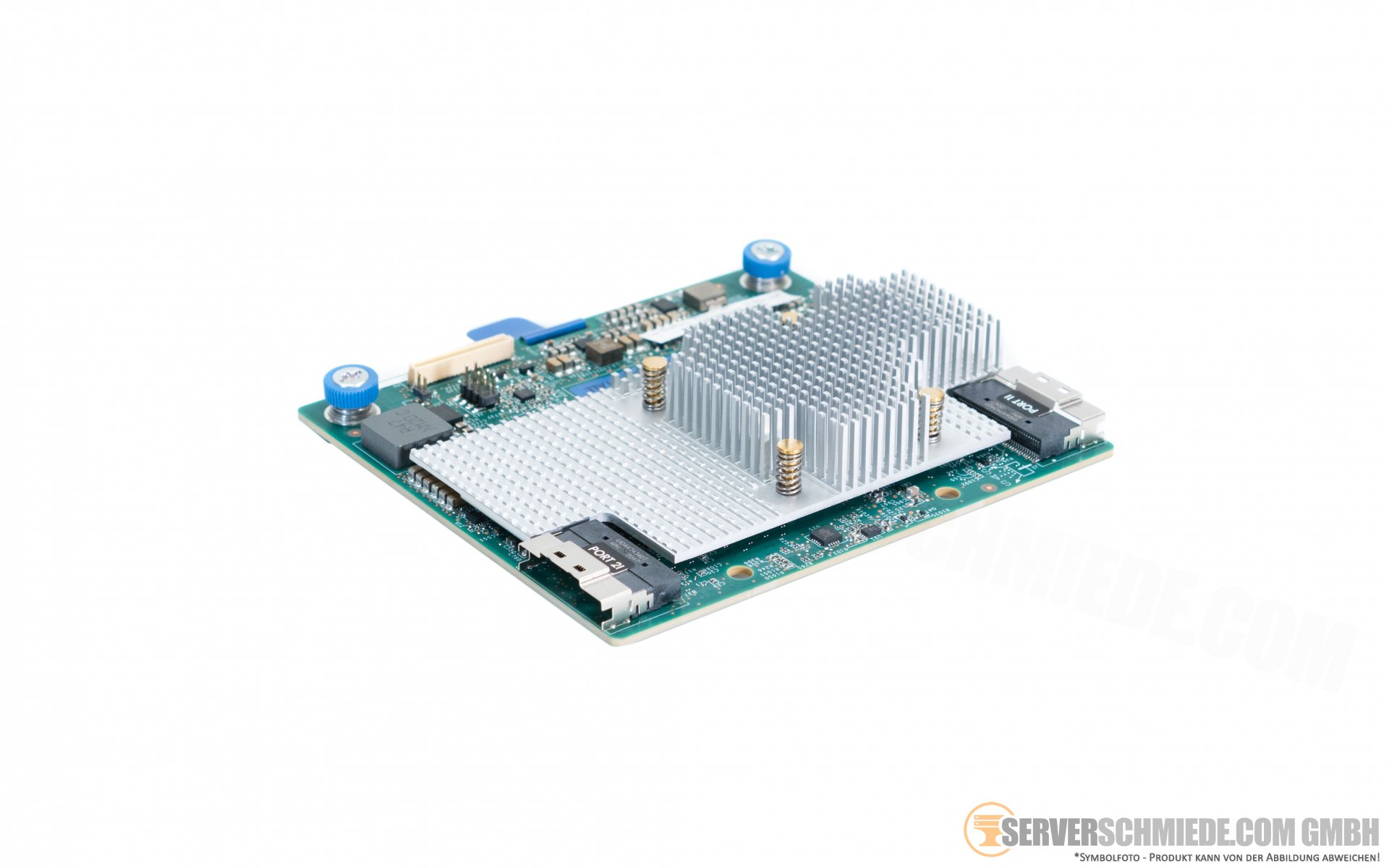

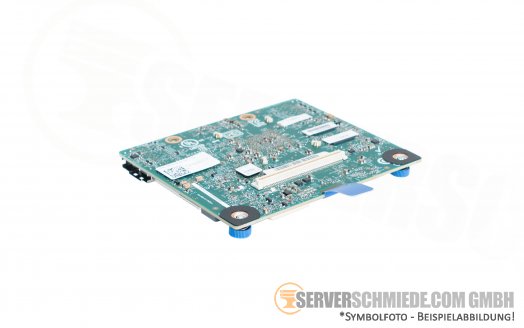

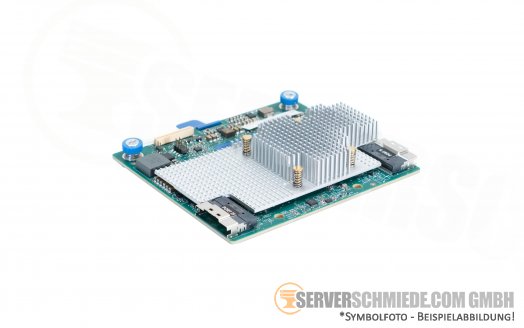

HP SR416i-a 4GB - 24Gb SAS SATA NVMe Tri-Mode Storage Controller DL3xx Gen10 Plus Raid: 0, 1, 5, 6, 10, 50, 60 P12688-B21
Product No.: A29093
Base price: 982,00 €
incl.
19% MwSt | excl. Shipping
Price excl. VAT: 825,21 €
Availability:
Shipping time: 1-2 Days + shipping
Weight KG: 0.12kg
Vendor / OEM: HP | Broadcom
Model: SmartRAID SR416i-a
PN: P12688-B21 P12691-001 P13928-001 P12691-001U
Controller Type: Storage internal SAS
Formfactor: module
Host Bus: PCIe x8
Interface: 2x SFF-9402 12 GB
Cache: 4 GB
RAID Level: 0, 1, 5, 6, 10, 50, 60
Net weight: 0,124 kg
Board dimensions: L: 22 cm | B: 25 cm | H: 6 cm
8-lane (x8) (SR416i-a) PCIe Gen4 host interface
SR416i-a: 16 Internal Tri-Mode ports (SlimSAS SFF-9402 connectors supporting U.2 and U.3) supporting up to 16 direct-connected SAS/SATA/NVMe devices
Hardware RAID: RAID 0, 1, 1 TP, 10, 10 TP, 5, 6, 50, 60
Universal Backplane Management (UBM) support – SAS/SATA and NVMe
SR416i-a: 4GB 72b DDR4-3200 cache with integrated cache protection using HPE Smart Storage Battery solution •
SR416i-a: Up to 24GB/s of bi-directional throughput and up to 3.5M IOPs
Enclosure Management Support – SAS/SATA: SES (SAS expander-based backplanes), SGPIO (direct attached SAS/SATA backplanes)
Secure boot, secure update, secure debug and attestation
Data-At-Rest Encryption support using Controller-Based Encryption(CBE) for SAS, SATA and NVMe devices
SmartCache SSD caching • Mixed mode and HBA mode support
Support for up to 238 SSDs/HDDs
Support for NVMe target devices with Gen 3/4 interfaces (x1, x2, x4, and x8 wide interfaces)
Support for 64 logical drives/RAID arrays
Support for 512-byte SAS/SATA/NVMe devices
Integrated cache protection using HPE Smart Storage Battery solution
Internal SAS lanes : 16 internal SAS/SATA/NVMe (Tri-Mode); (SlimSAS SFF-9402 connectors supporting U.2 and U.3) supporting up to 16 direct-connected SAS/SATA/NVMe devices
PCIe Interface: 8-lane PCIe Gen 4
Data Transfer: Up to 24GB/s of bi-directional throughput and up to 3.5M IOPs
Cache: 4GB 72b DDR4-3200 MHz with integrated cache protection using HPE Smart Storage Battery solution
Storage Protocol: 6G SATA, 6G/12G/24G SAS, Gen 3/Gen4
Storage Management Smart Storage Administrator (SSA)
I/O slot: PCI Express 4.0: x8 link
Maximum Physical Drives: 238
Maximum Logical Drives: 64
RAID: 0/1/5/6/10/50/60/1 TP/10 TP
SSD Accelerator: Smart Path
Other features:
Online capacity expansion and RAID level migration
Dynamic caching algorithm • Hot-plug drive support
Hot spares—global, dedicated, and pooled (including copyback)
Configurable stripe size • Dynamic sector repair
Bootable array support through legacy and uEFI bios
Smart PQI driver with multiple queue and MSI-X support for all supported operating system device drivers
Dynamic adapter power management
Secure boot support for the uEFI host BIOS
Smart Storage Administrator GUI and CLI utilities for configuration, management and diagnosis of SmartRAID controllers
SR416i-a: 16 Internal Tri-Mode ports (SlimSAS SFF-9402 connectors supporting U.2 and U.3) supporting up to 16 direct-connected SAS/SATA/NVMe devices
Hardware RAID: RAID 0, 1, 1 TP, 10, 10 TP, 5, 6, 50, 60
Universal Backplane Management (UBM) support – SAS/SATA and NVMe
SR416i-a: 4GB 72b DDR4-3200 cache with integrated cache protection using HPE Smart Storage Battery solution •
SR416i-a: Up to 24GB/s of bi-directional throughput and up to 3.5M IOPs
Enclosure Management Support – SAS/SATA: SES (SAS expander-based backplanes), SGPIO (direct attached SAS/SATA backplanes)
Secure boot, secure update, secure debug and attestation
Data-At-Rest Encryption support using Controller-Based Encryption(CBE) for SAS, SATA and NVMe devices
SmartCache SSD caching • Mixed mode and HBA mode support
Support for up to 238 SSDs/HDDs
Support for NVMe target devices with Gen 3/4 interfaces (x1, x2, x4, and x8 wide interfaces)
Support for 64 logical drives/RAID arrays
Support for 512-byte SAS/SATA/NVMe devices
Integrated cache protection using HPE Smart Storage Battery solution
Internal SAS lanes : 16 internal SAS/SATA/NVMe (Tri-Mode); (SlimSAS SFF-9402 connectors supporting U.2 and U.3) supporting up to 16 direct-connected SAS/SATA/NVMe devices
PCIe Interface: 8-lane PCIe Gen 4
Data Transfer: Up to 24GB/s of bi-directional throughput and up to 3.5M IOPs
Cache: 4GB 72b DDR4-3200 MHz with integrated cache protection using HPE Smart Storage Battery solution
Storage Protocol: 6G SATA, 6G/12G/24G SAS, Gen 3/Gen4
Storage Management Smart Storage Administrator (SSA)
I/O slot: PCI Express 4.0: x8 link
Maximum Physical Drives: 238
Maximum Logical Drives: 64
RAID: 0/1/5/6/10/50/60/1 TP/10 TP
SSD Accelerator: Smart Path
Other features:
Online capacity expansion and RAID level migration
Dynamic caching algorithm • Hot-plug drive support
Hot spares—global, dedicated, and pooled (including copyback)
Configurable stripe size • Dynamic sector repair
Bootable array support through legacy and uEFI bios
Smart PQI driver with multiple queue and MSI-X support for all supported operating system device drivers
Dynamic adapter power management
Secure boot support for the uEFI host BIOS
Smart Storage Administrator GUI and CLI utilities for configuration, management and diagnosis of SmartRAID controllers
Item condition: refurbished, Grade A. The item has been completely tested / refurbished.
