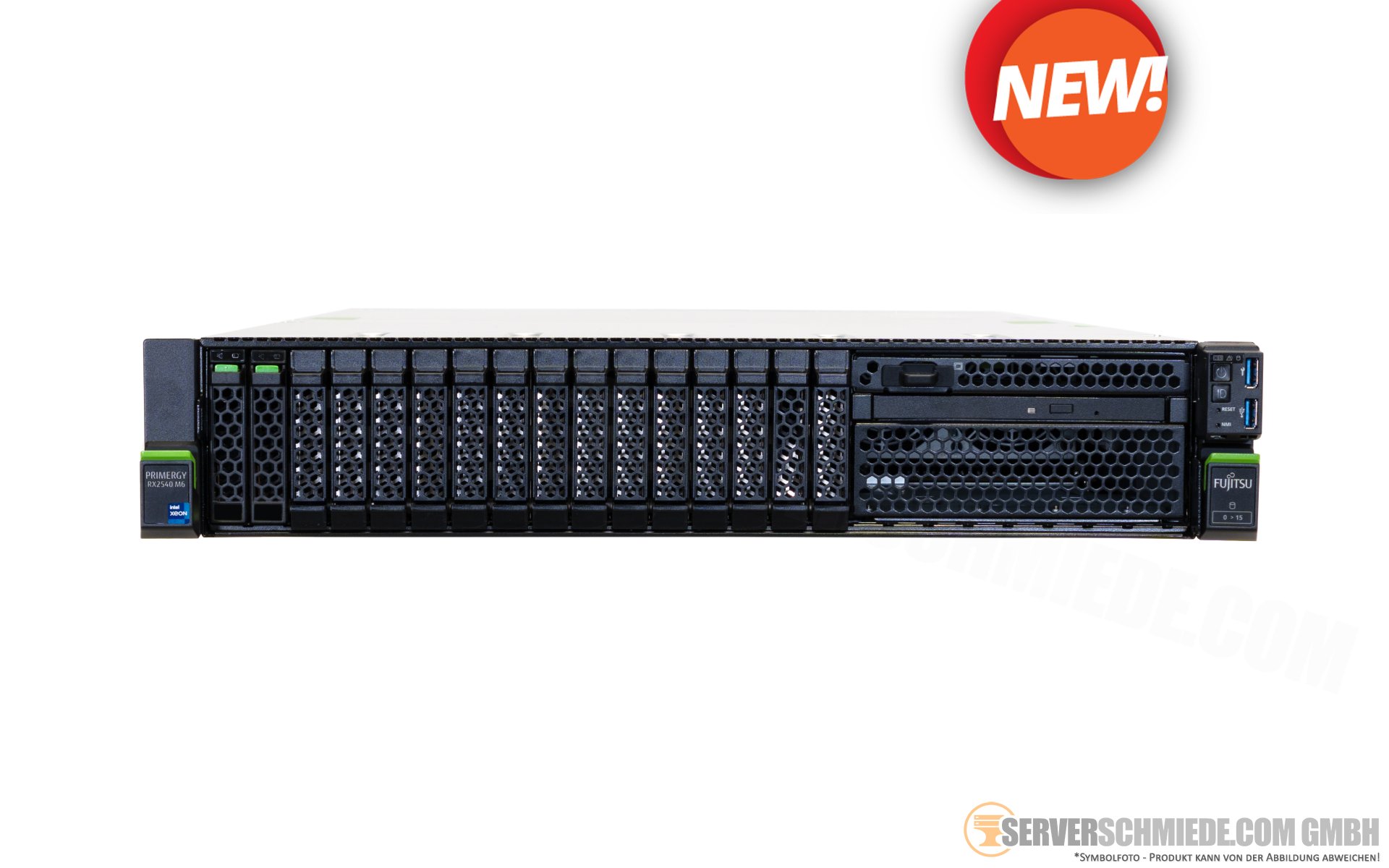

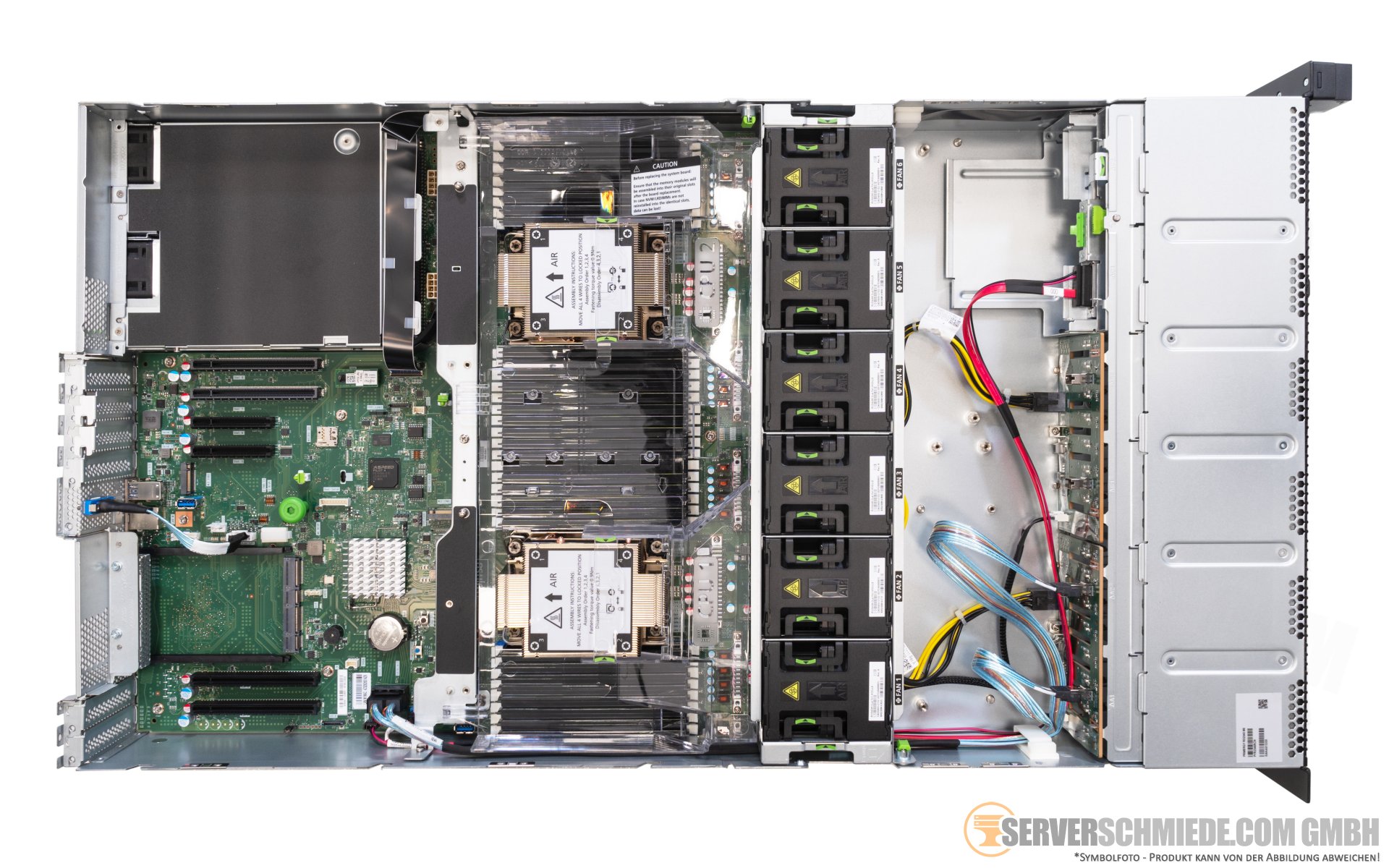

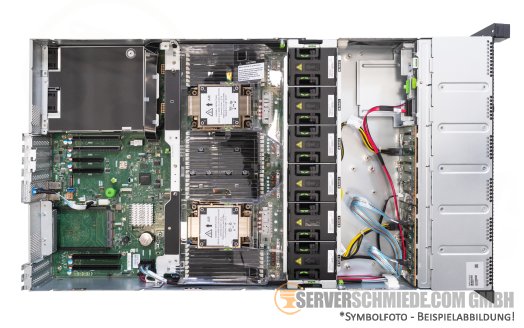

Fujitsu Primergy RX2540 M6 Server 16x 2,5" SFF 2x Intel XEON Scalable LGA4189 DDR4 ECC Raid 2x PSU +NEW+
Produktbeschreibung
Hersteller: Fujitsu
Gerätetyp: Server
Bauart: 19" 2 HE
Modell: Primergy RX2540 M6

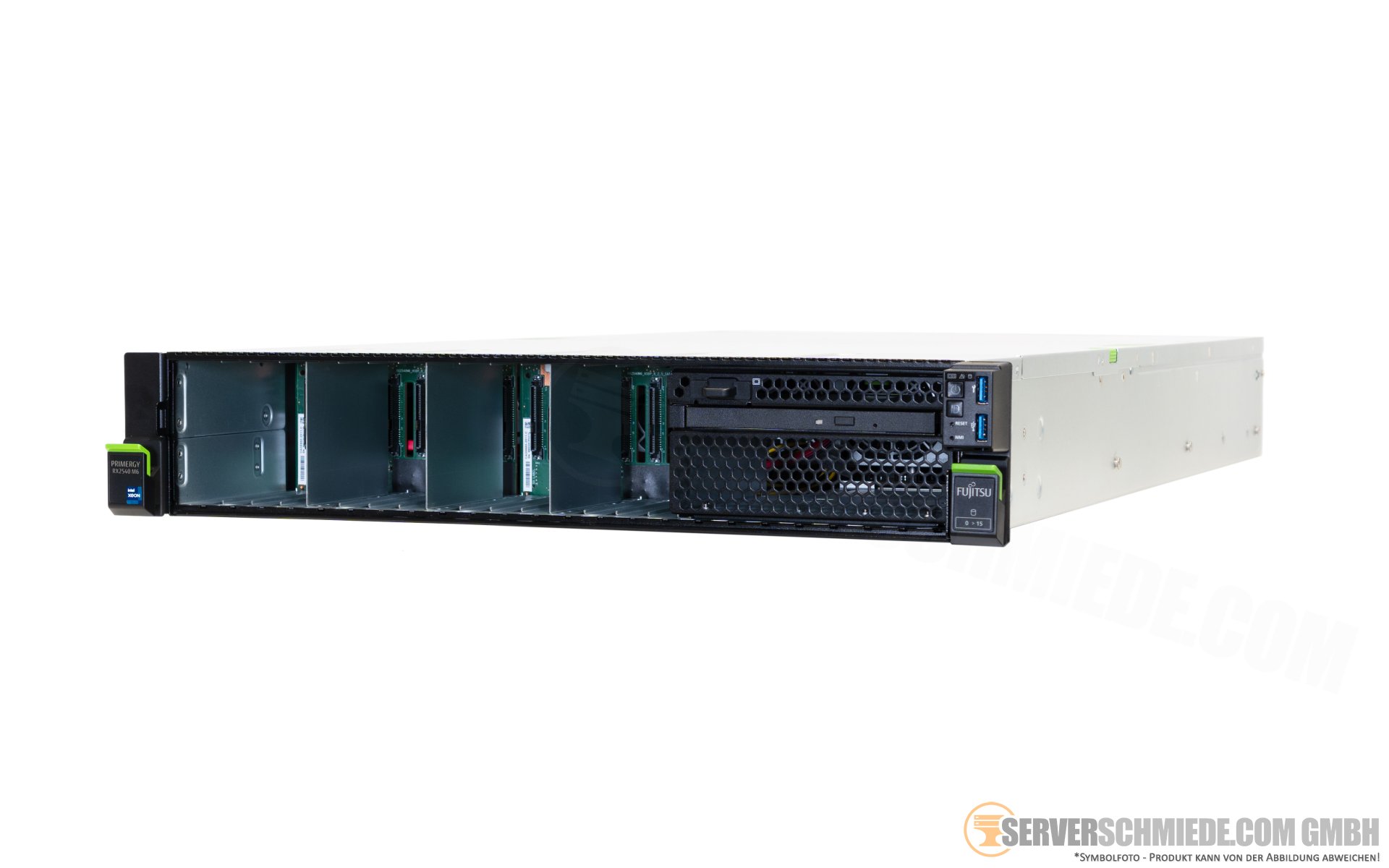

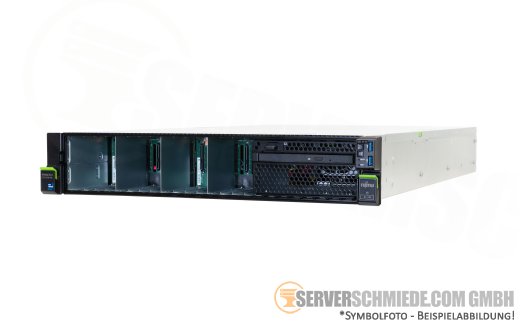

Festplatten HDD Bays:
16x HotSwap Festplatten Einschub SAS/S-ATA Backplane
ohne Auswahl von Festplatten oder Trays sind keine HDD Trays im Lieferumfang enthalten
16x HotSwap Festplatten Einschub SAS/S-ATA Backplane
ohne Auswahl von Festplatten oder Trays sind keine HDD Trays im Lieferumfang enthalten
Arbeitsspeicher: DDR4 reg. ECC (PC4-2933Y default Speichergeschwindigkeit bei RAM Auswahl)
Optisches Laufwerk: ohne
Networking: optional selectable

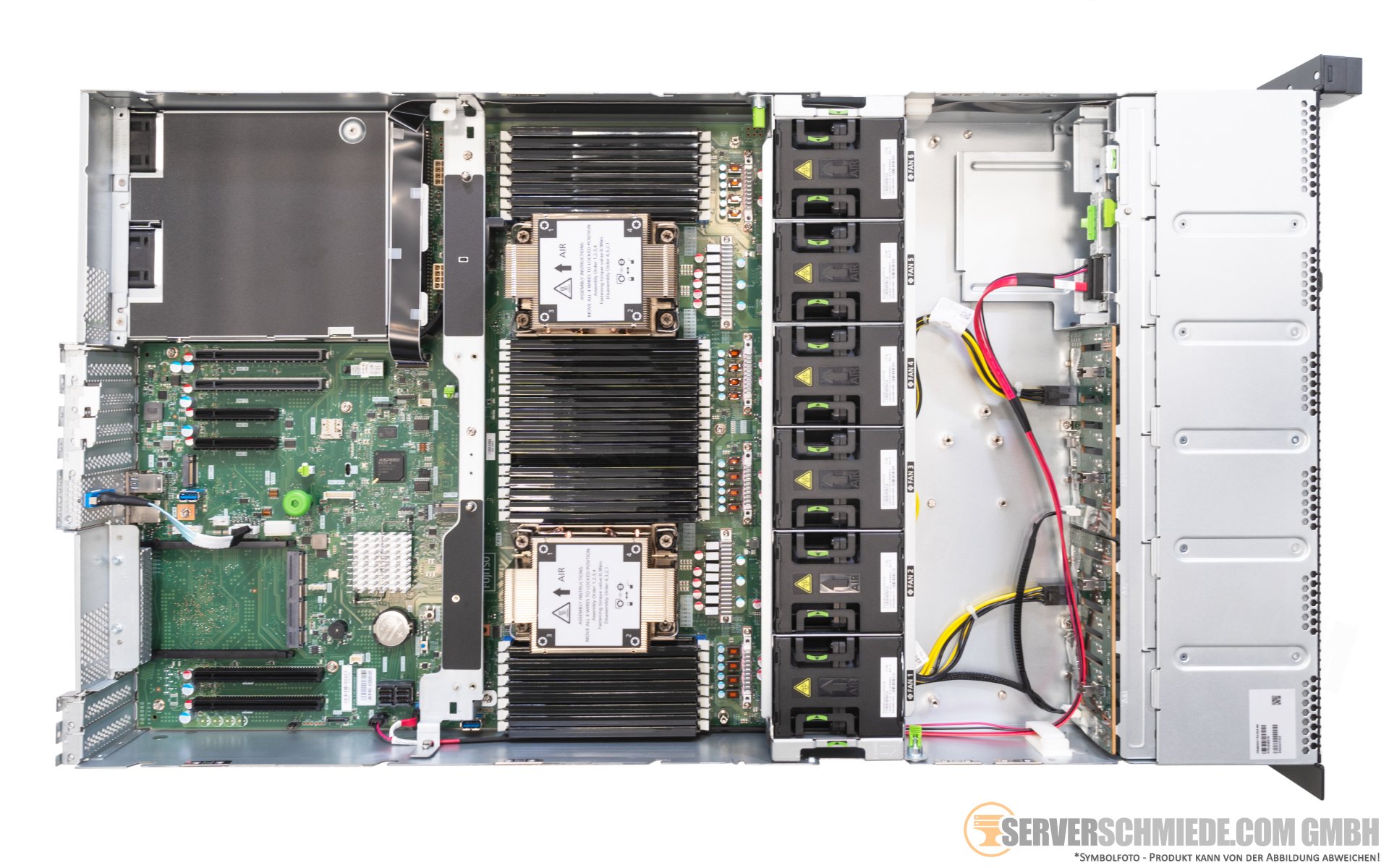

Interne Schnittstellen:
2x FCLGA4189 Intel CPU Sockel für 3. Generation Skalierbare Intel® Xeon® Prozessoren - bis 40 Core CPU
Intel® C621A Series Chipset
32x DDR4 288pin ECC DIMM banks up to 12TB RAM (DDR4 RDIMM, LRDIMM und Intel® Optane™ PMem)
ECC, Memory Scrubbing, SDDC, ADDDC (Adaptive Double DRAM Device Correction), Unterstützung von Memory Mirroring
2x Riser interface:
3x PCIe 4.0 x8 Low profile (2nd processor required for slot 4)
4x PCIe 4.0 x16 Low profile (2nd processor required for slot 6 and 8)
1x PCIe 4.0 x8 Modular RAID controller Slot
3x PCIe slots are supported with the first processor
4x PCIe slots are supported with two processors.
2x USB 3.0 connector
1x SATA-Kanal für ODD
2x SATA-Kanäle für M.2 und 8 x SATA-Kanäle für HDD/S
2x FCLGA4189 Intel CPU Sockel für 3. Generation Skalierbare Intel® Xeon® Prozessoren - bis 40 Core CPU
Intel® C621A Series Chipset
32x DDR4 288pin ECC DIMM banks up to 12TB RAM (DDR4 RDIMM, LRDIMM und Intel® Optane™ PMem)
ECC, Memory Scrubbing, SDDC, ADDDC (Adaptive Double DRAM Device Correction), Unterstützung von Memory Mirroring
2x Riser interface:
3x PCIe 4.0 x8 Low profile (2nd processor required for slot 4)
4x PCIe 4.0 x16 Low profile (2nd processor required for slot 6 and 8)
1x PCIe 4.0 x8 Modular RAID controller Slot
3x PCIe slots are supported with the first processor
4x PCIe slots are supported with two processors.
2x USB 3.0 connector
1x SATA-Kanal für ODD
2x SATA-Kanäle für M.2 und 8 x SATA-Kanäle für HDD/S

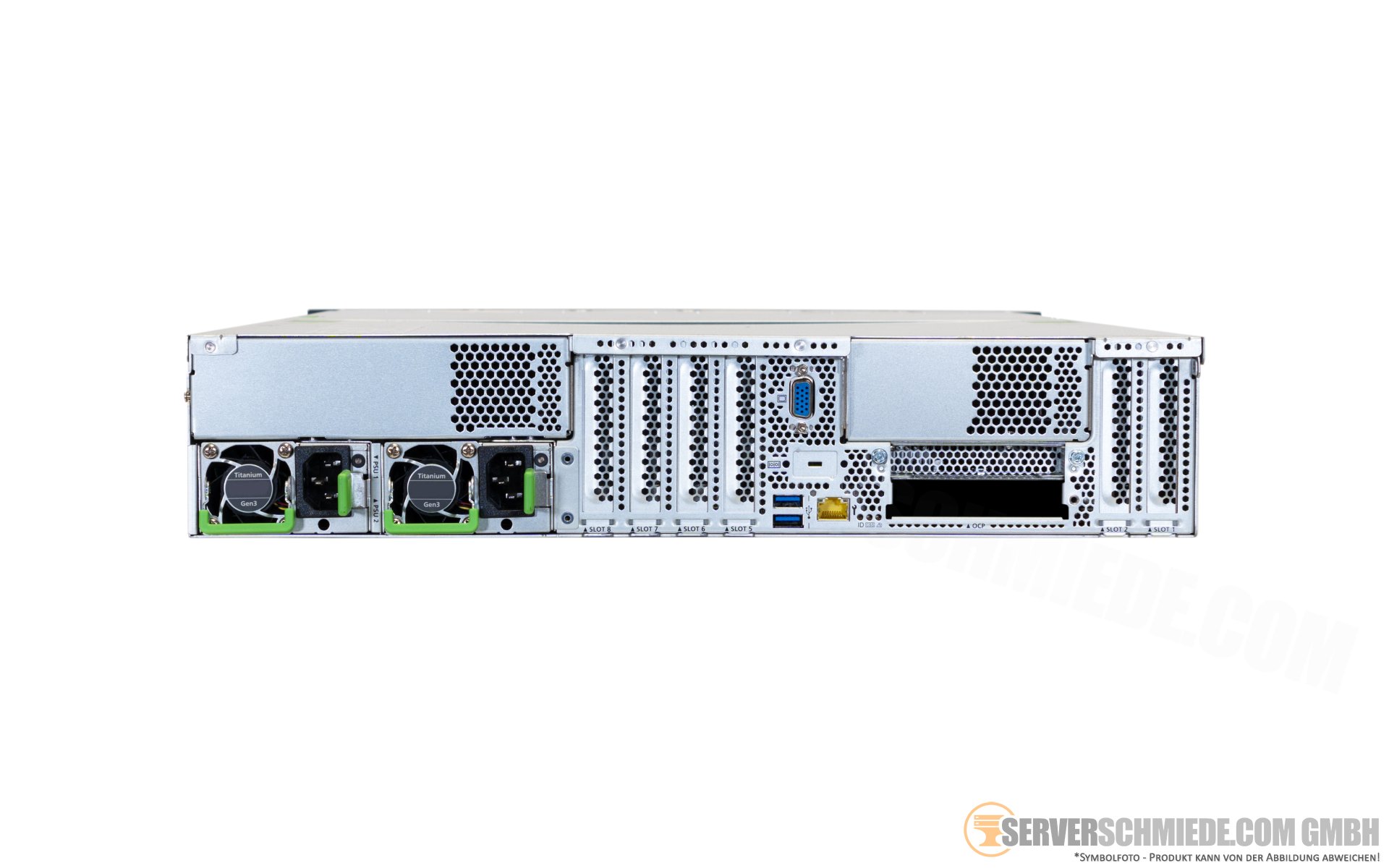

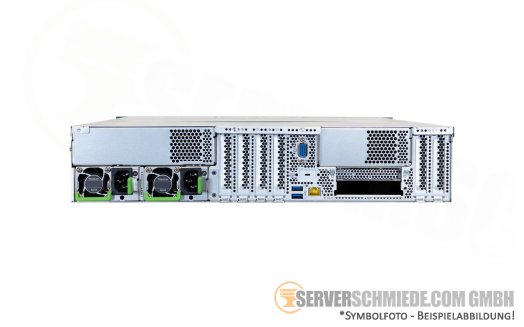

Externe Schnittstellen:
4x USB 3.0 (2x front)
1x optional OCP Port to add different network controllers
1x RJ-45 dedicated management LAN port for iRMC S5
1x VGA 15pol. D-SUB
1x iLO Front Service Port (Optional)
Optional OCP adaptors:
4x 1GbE (RJ45)
2x 10GbE (RJ45)
4x 10GbE (RJ45)
2x 10Gb SFP+
4x 10Gb SFP+
2x 25Gb QSFP28
2x 100Gb QSFP28
4x USB 3.0 (2x front)
1x optional OCP Port to add different network controllers
1x RJ-45 dedicated management LAN port for iRMC S5
1x VGA 15pol. D-SUB
1x iLO Front Service Port (Optional)
Optional OCP adaptors:
4x 1GbE (RJ45)
2x 10GbE (RJ45)
4x 10GbE (RJ45)
2x 10Gb SFP+
4x 10Gb SFP+
2x 25Gb QSFP28
2x 100Gb QSFP28
Grafikkarte: onboard
Powerunits: 2x Fujitsu HotSwap Power supply (selectable)
Nettogewicht: 15,44 kg
Rackeinbautiefe: 84,5 cm
Artikelabmessung: L: 84 cm | B: 43,4 cm | H: 8,8 cm
Kompatible Betriebssysteme:
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*kompatibles TPM Modul wird benötigt
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*kompatibles TPM Modul wird benötigt
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Artikelzustand: Neuware, Bulk - mit Herstellergarantie
Jedes Gerät wird vor Auslieferung ausgiebig geprüft. Systembios, Storage-, Netzwerk- und Management Controller werden auf die aktuelle frei verfügbare Firmware geflasht.
Jedes Gerät wird vor Auslieferung ausgiebig geprüft. Systembios, Storage-, Netzwerk- und Management Controller werden auf die aktuelle frei verfügbare Firmware geflasht.
Artikelnummer: SK0384
Basispreis: 3.421,00 €
inkl.
19% MwSt | exkl. Versandkosten
Preis exkl. MwSt.: 2.874,79 €
Verfügbarkeit:
Lieferzeit: 2-5 Arbeitstage (exkl. Wochenende, exkl. Feiertage) + Versandlaufzeit
Gewicht: 26.00kg
