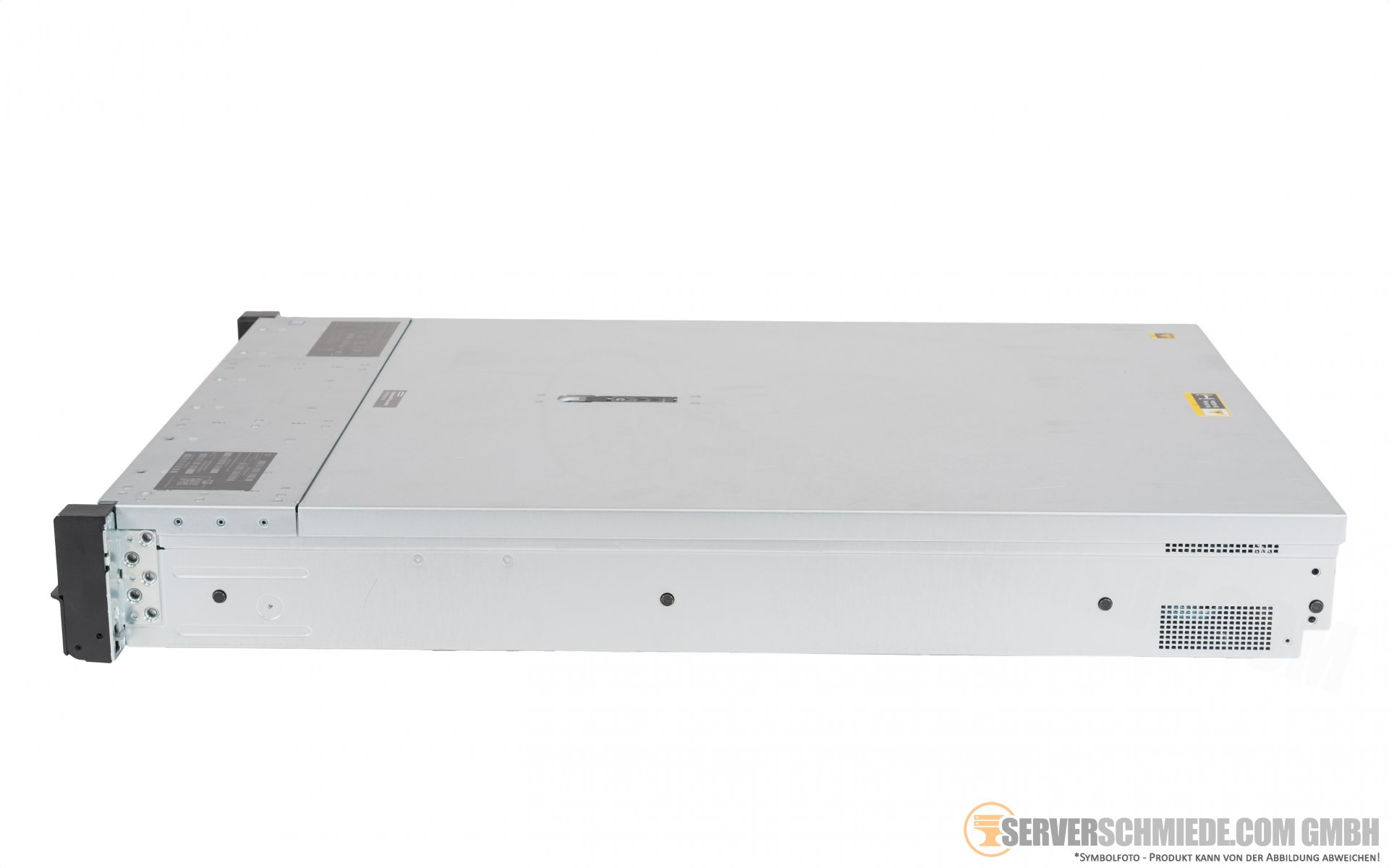

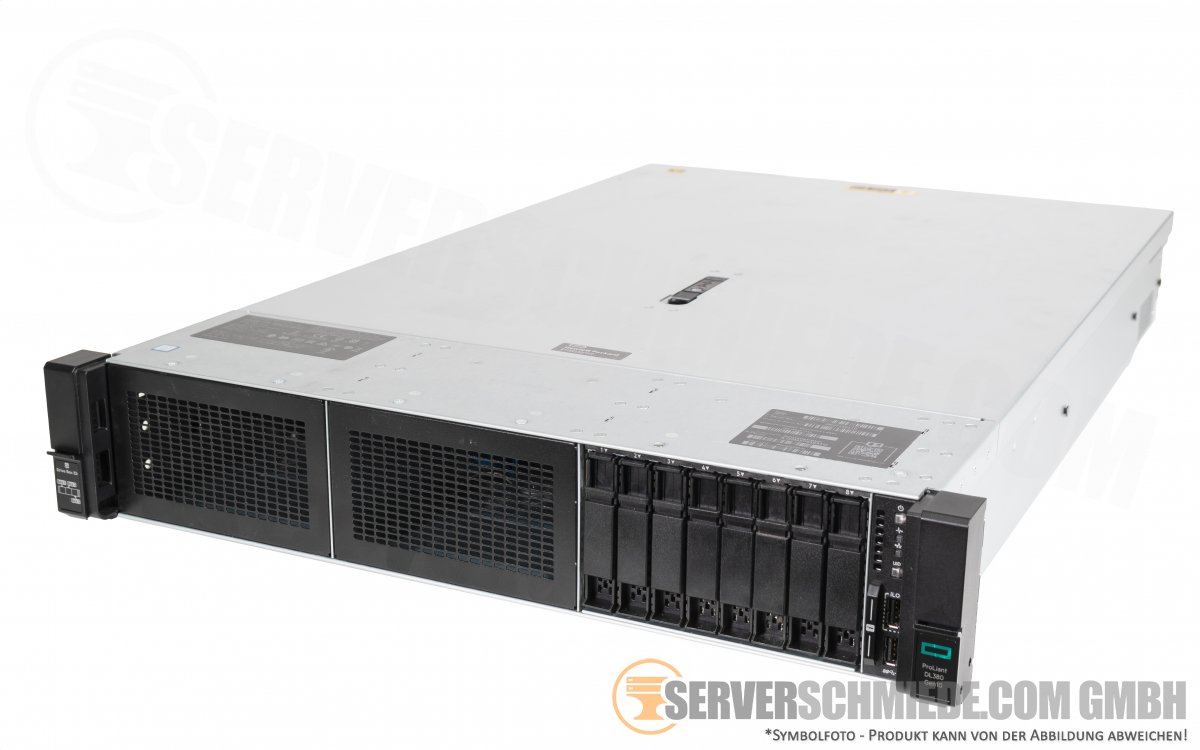

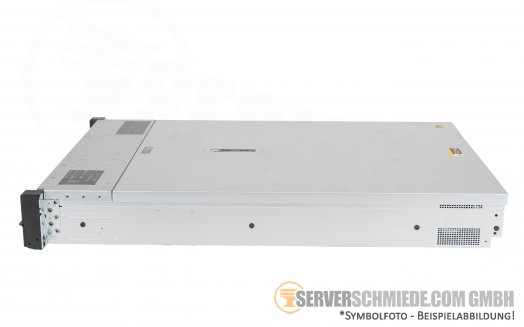

HP ProLiant DL380 Gen10 G10 2U Server 8x 2,5" SFF 2x Intel XEON Scalable LGA3647 DDR4 ECC Raid 2x PSU
Product description
Vendor: HP
Unit type: Server
Type: 19" 2 HE
Model: ProLiant DL380 Gen10

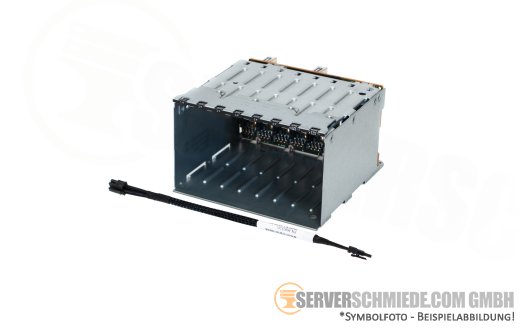

HDD bays: 8x HotSwap HDD Bays SAS/S-ATA Backplane
without selected hdds or trays are no hdd trays included in delivery
without selected hdds or trays are no hdd trays included in delivery
RAM: DDR4 registered ECC (PC4-2400T default memory speed with RAM selection)
Optical drive: ohne
Networking: HPE Embedded 1Gb Ethernet 4-Port 331i Adapter

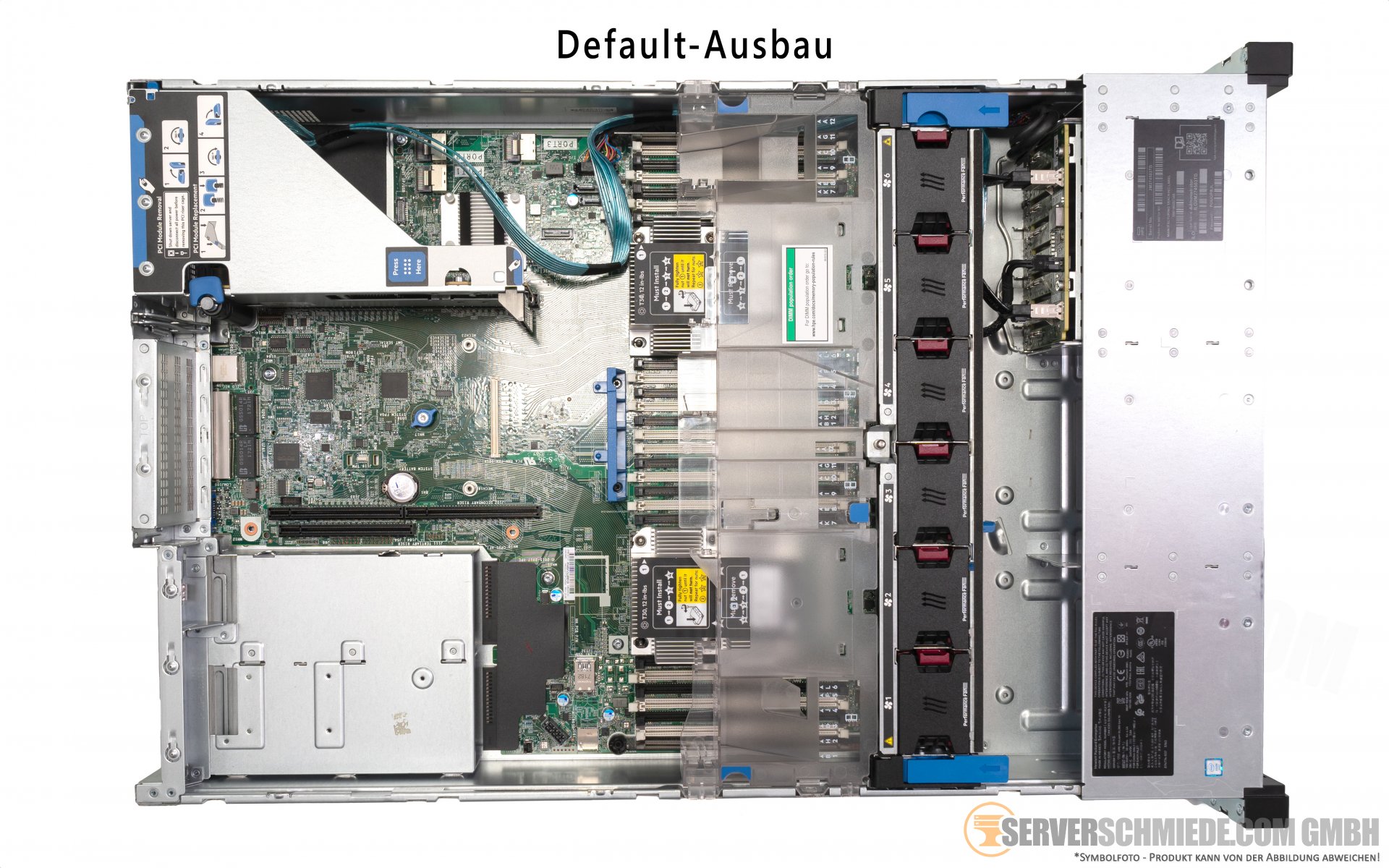

Internal interfaces:
information
2x FCLGA3647 Intel CPU Sockel für Skalierbare Intel® Xeon® Prozessoren - bis 28 Core CPU
24x DDR4 288pin ECC DIMM banks up to 3TB RAM
Intel® C621 Series Chipset

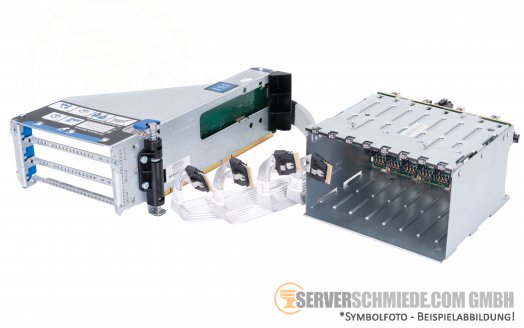

3x Riser interface:

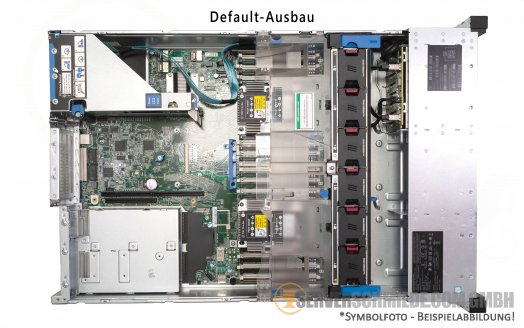

Primary Riser CPU 1
Primary Riser 1 CPU 1:
1. PCIe 3.0 x8 - x8 Connector - Full-height,Full-length slot
2. PCIe 3.0 x8 - x16 Connector - Full-height,Full-length slot
3. PCIe 3.0 x8 - x8 Connector - Full-height,Half-length slot

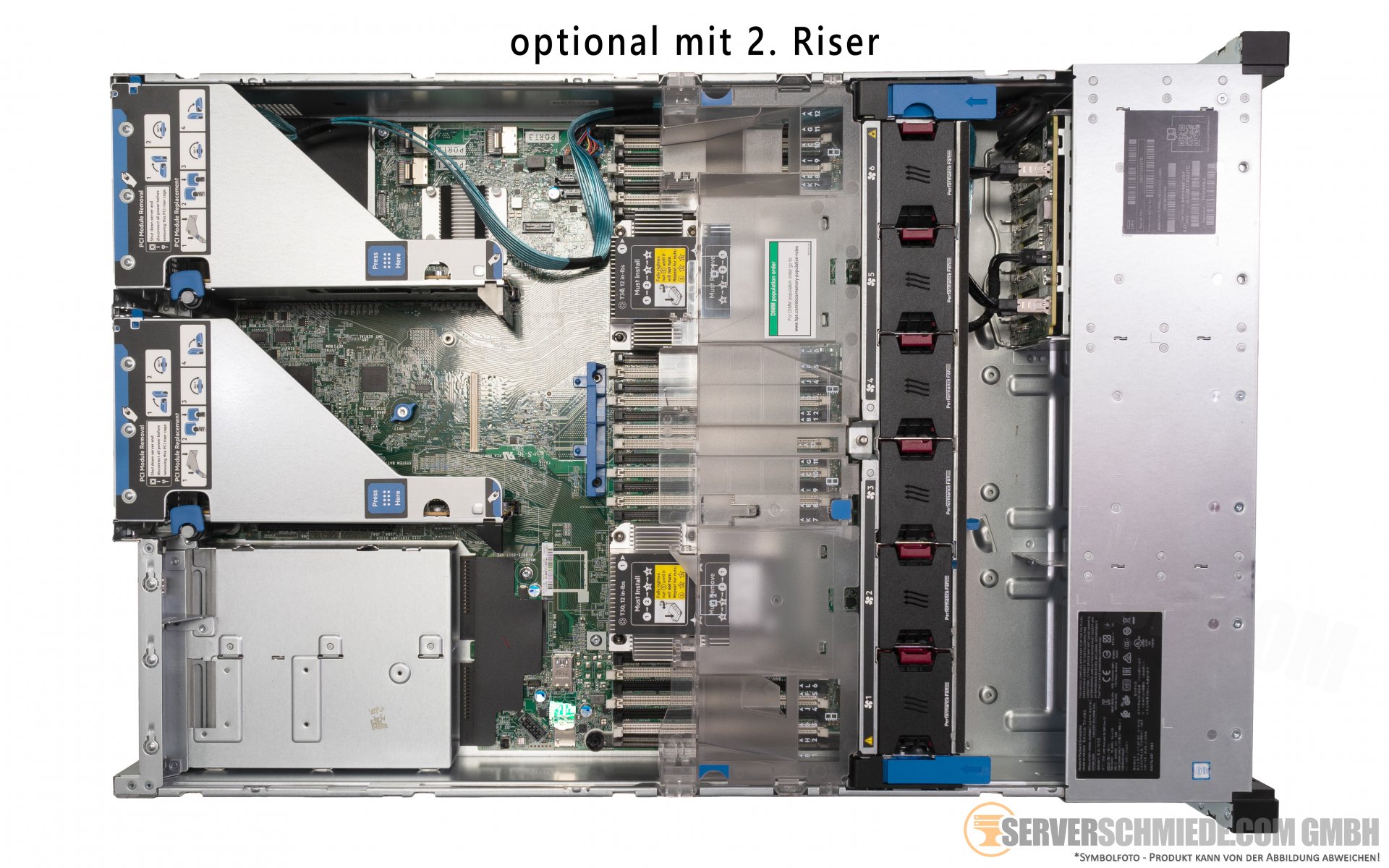

Optional Secondary Riser CPU 2
Option Secondary Riser 1 CPU 2:
1. PCIe 3.0 x8 - x8 Connector - Full-height,Full-length slot
2. PCIe 3.0 x8 - x16 Connector - Full-height,Full-length slot
3. PCIe 3.0 x8 - x8 Connector - Full-height,Half-length slot
Option Secondary Riser 2 CPU 2:
1. -none-
2. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
3. PCIe 3.0 x16 - x16 Connector - Full-height,Half-length slot
Option Secondary Riser 3 CPU 2:
1. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
2. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
3. -none-
Optional Tertiary Riser CPU 2
Option Tertiary Riser 1 CPU 2:
1. PCIe 3.0 x8 - x8 Connector - Full-height,Full-length slot
2. PCIe 3.0 x8 - x8 Connector - Full-height,Full-length slot
Option Tertiary Riser 2 CPU 2:
2. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
Integrated Storage Controller
S100i Storage Controller
Interfaces
3x SFF-8087 for up to 10x SATA
1x USB 3.0 connector
1x MicroSD card slot
1x FlexibleLOM slot
2x SATA
information
2x FCLGA3647 Intel CPU Sockel für Skalierbare Intel® Xeon® Prozessoren - bis 28 Core CPU
24x DDR4 288pin ECC DIMM banks up to 3TB RAM
Intel® C621 Series Chipset
3x Riser interface:
Primary Riser CPU 1
Primary Riser 1 CPU 1:
1. PCIe 3.0 x8 - x8 Connector - Full-height,Full-length slot
2. PCIe 3.0 x8 - x16 Connector - Full-height,Full-length slot
3. PCIe 3.0 x8 - x8 Connector - Full-height,Half-length slot
Optional Secondary Riser CPU 2
Option Secondary Riser 1 CPU 2:
1. PCIe 3.0 x8 - x8 Connector - Full-height,Full-length slot
2. PCIe 3.0 x8 - x16 Connector - Full-height,Full-length slot
3. PCIe 3.0 x8 - x8 Connector - Full-height,Half-length slot
Option Secondary Riser 2 CPU 2:
1. -none-
2. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
3. PCIe 3.0 x16 - x16 Connector - Full-height,Half-length slot
Option Secondary Riser 3 CPU 2:
1. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
2. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
3. -none-
Optional Tertiary Riser CPU 2
Option Tertiary Riser 1 CPU 2:
1. PCIe 3.0 x8 - x8 Connector - Full-height,Full-length slot
2. PCIe 3.0 x8 - x8 Connector - Full-height,Full-length slot
Option Tertiary Riser 2 CPU 2:
2. PCIe 3.0 x16 - x16 Connector - Full-height,Full-length slot
Integrated Storage Controller
S100i Storage Controller
Interfaces
3x SFF-8087 for up to 10x SATA
1x USB 3.0 connector
1x MicroSD card slot
1x FlexibleLOM slot
2x SATA

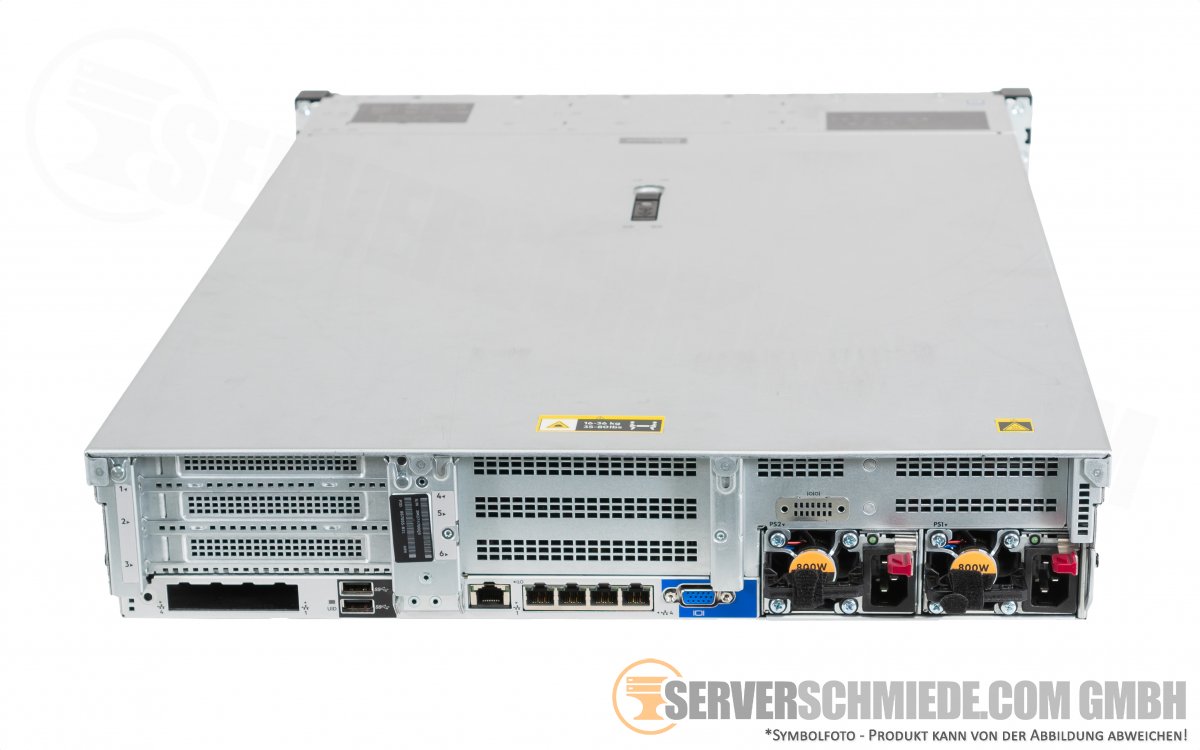

External interfaces:
3x USB 3.0 (1x front)
4x 1GbE LAN RJ-45 Copper
1x RJ-45 Servermanagement iLO4 Port
1x VGA 15pol. D-SUB
1x iLO Front Service Port
3x USB 3.0 (1x front)
4x 1GbE LAN RJ-45 Copper
1x RJ-45 Servermanagement iLO4 Port
1x VGA 15pol. D-SUB
1x iLO Front Service Port
Videocard: onboard
Powerunits: 2x HP HotSwap Power supply
Net weight: 16 kg
Installation depth: 71 cm
Dimensions: L: 73 cm | B: 48,5 cm | H: 9 cm
Compatible operating systems:
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Windows: Windows Server 2016, 2019, 2022*; Windows 10, 11*
*compatible TPM module is required
Virtualisierung: vmware ; Citrix ; Microsoft Hyper-V ; Proxmoxx; Linux KVM
Linux Betriebssysteme: Linux Suse, Linux RHEL (RedHat), Debian, Fedora etc.
Item condition: refurbished, Grade A
Every device has been cleaned and carefully checked before delivery. Latest free available firmware has been flashed on systembios, storage-, network- and management controller.
Every device has been cleaned and carefully checked before delivery. Latest free available firmware has been flashed on systembios, storage-, network- and management controller.
Product No.: SK0191
Base price: 382,00 €
incl.
19% MwSt | excl. Shipping
Price excl. VAT: 321,01 €
Availability:
Shipping time: 2-5 days + shipping time (excl. weekend, excl. business holidays)
Weight KG: 26.00kg
